GFMHR-2000W battery model, view 1

Product · Technical data

High-Rate Battery, GFMHR Series (2 V)

2 V high-rate cells for large UPS strings, 500 W - 2000 W per cell.

Choose a model

Get Price & DatasheetWhatsApp an EngineerRelated Products

Model-specific price, datasheet and lead time. Engineering reply within one business day.

Specification Brochure data
Battery type
VRLA gel (AGM)
Nominal voltage
2 V (1 cell)
Capacity range
180 - 730 Ah
Design life
12 years
Cycle use voltage
2.38 - 2.42 V
Standby use voltage
2.23 - 2.27 V

Preliminary figures from the current brochure. Final configuration and performance are confirmed in the quotation.

01Model overview

2 V (1 cell) Nominal voltage
12 years Design life
6 Models in this range
Model 10HR capacity 1HR capacity Internal resistance Max charge current Dimensions
GFMHR-500W 180 Ah 99 Ah 0.65 mΩ 174 × 99 × 346 mm

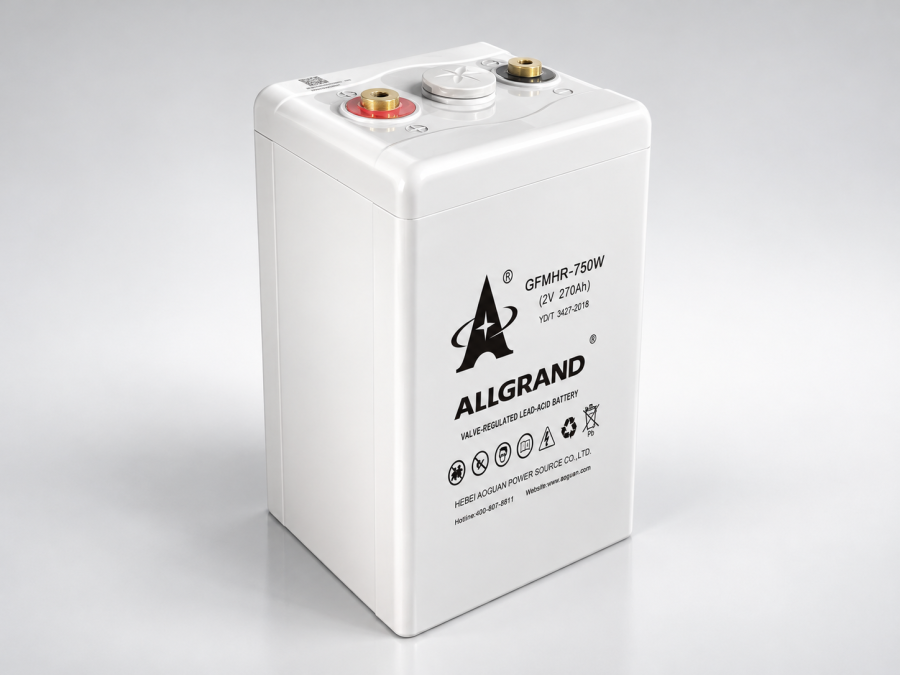

GFMHR-750W 270 Ah 149 Ah 0.62 mΩ 174 × 141 × 346 mm

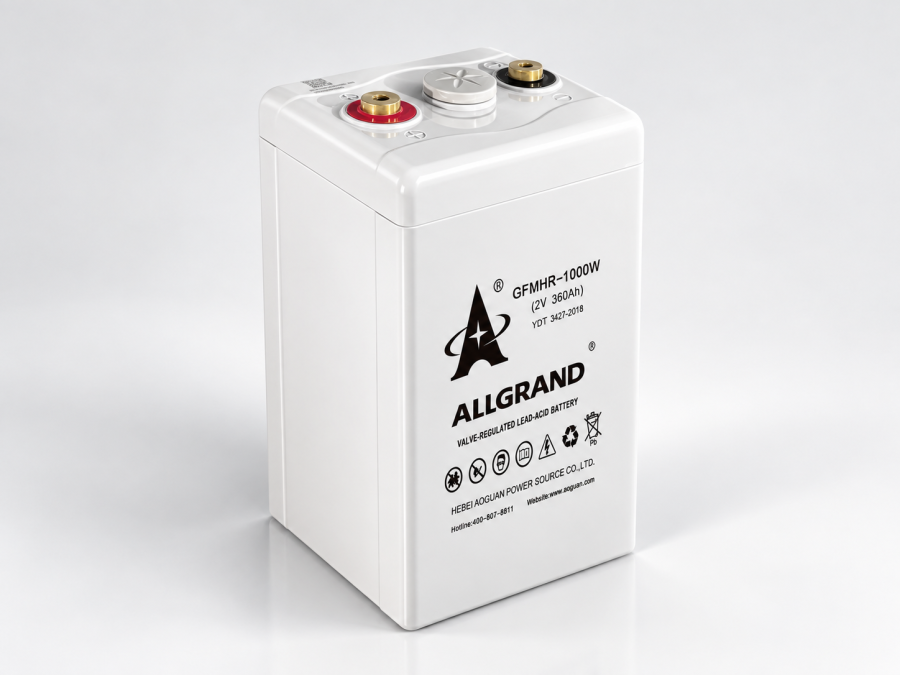

GFMHR-1000W 360 Ah 198 Ah 0.49 mΩ 174 × 141 × 346 mm

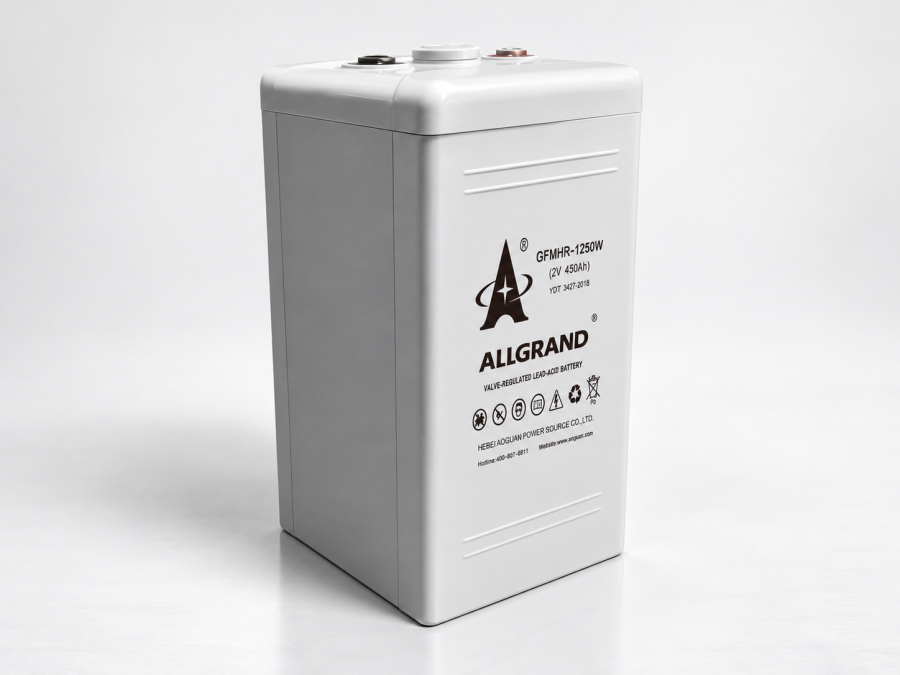

GFMHR-1250W 470 Ah 259 Ah 0.38 mΩ 174 × 175 × 346 mm

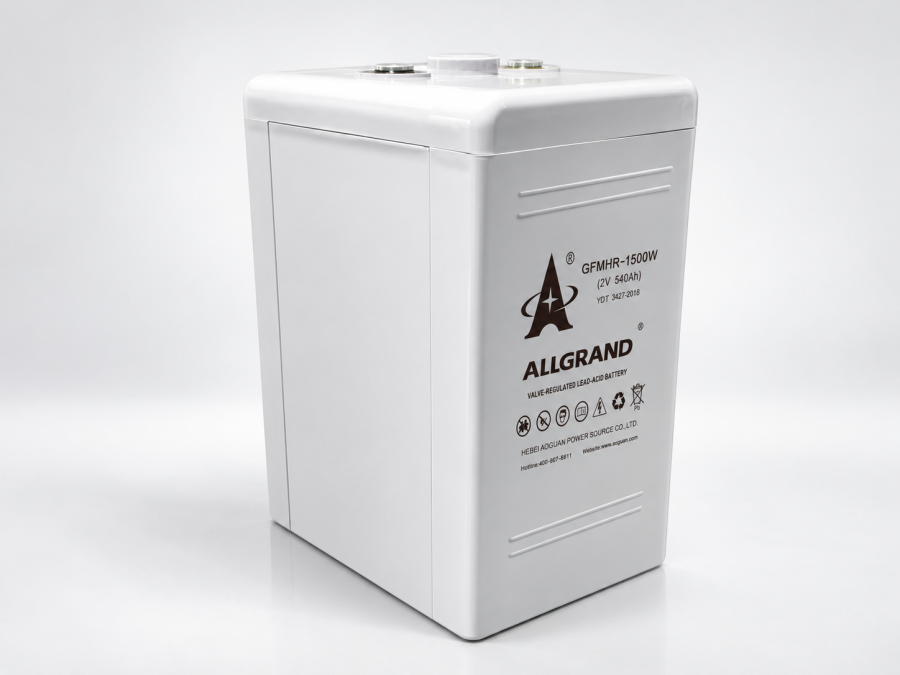

GFMHR-1500W 540 Ah 297 Ah 0.35 mΩ 213 × 174 × 346 mm

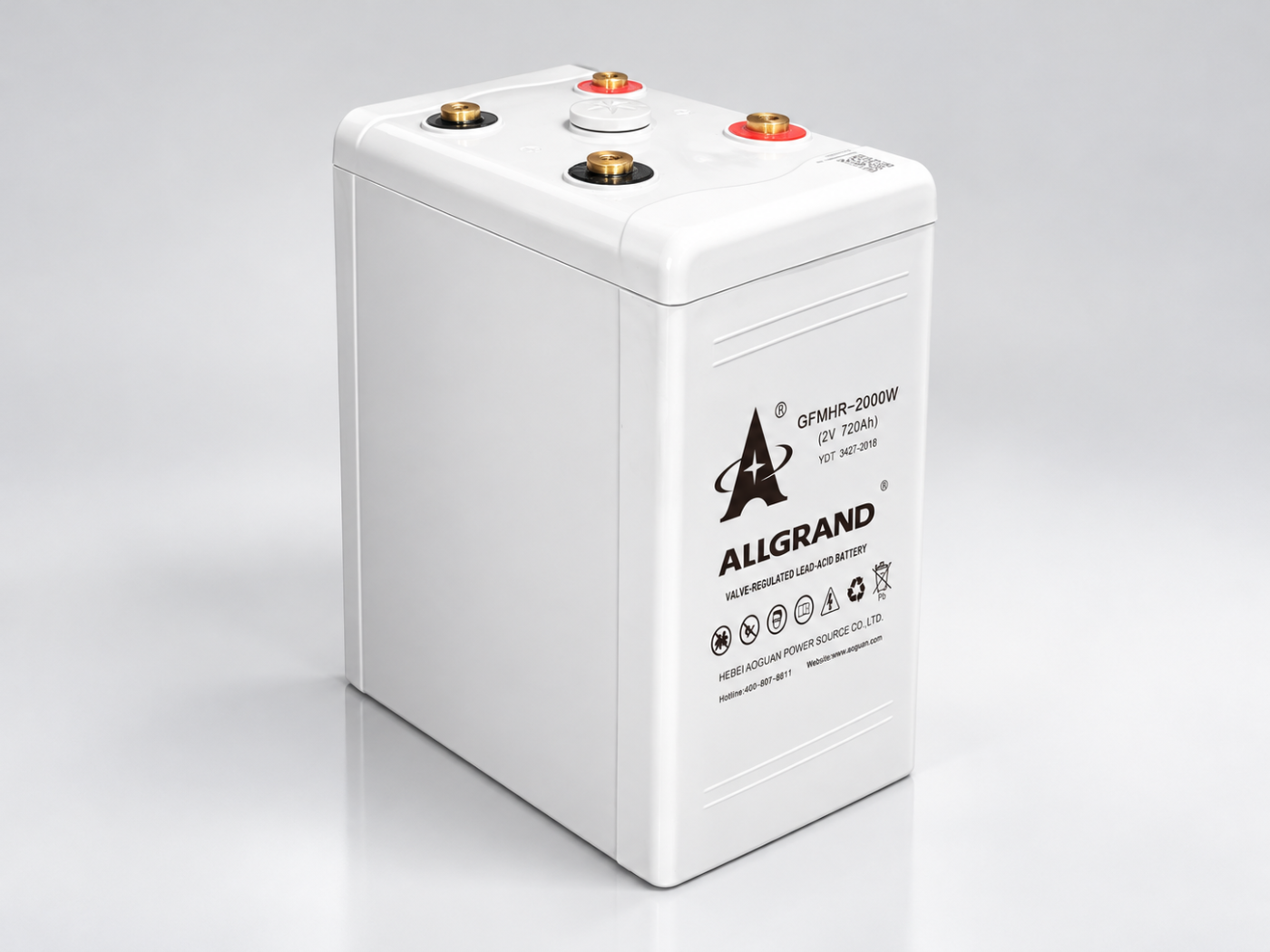

GFMHR-2000W 730 Ah 401 Ah 0.33 mΩ 252 × 174 × 346 mm

Figures are taken from the current AllGrand product brochure. Specifications are indicative and may be revised without notice — confirm with our engineers before ordering.

02Overview

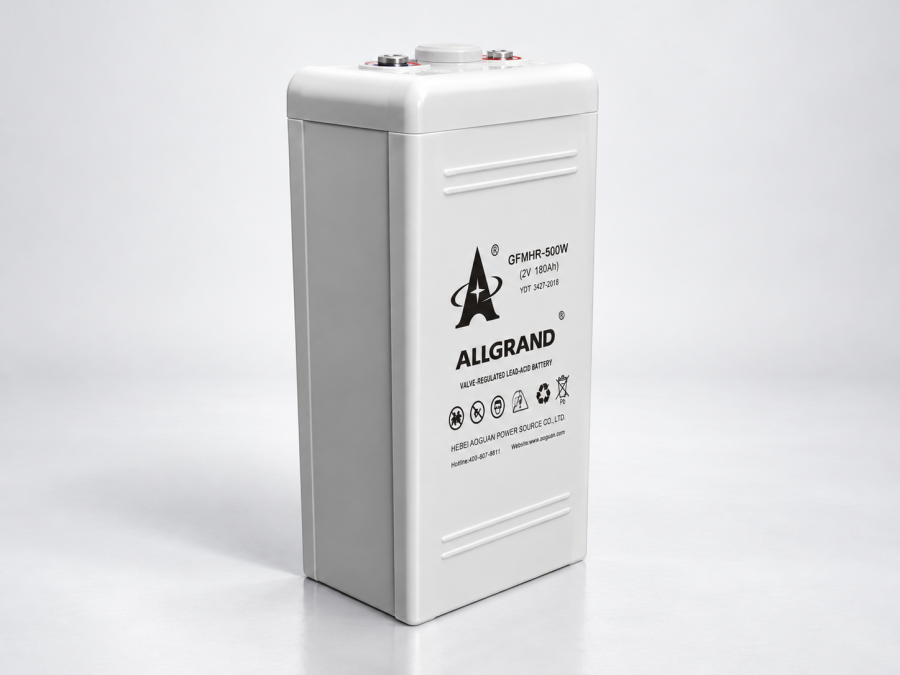

GFMHR-500W battery model, view 1

2 V high-rate cells for large UPS strings, 500 W – 2000 W per cell.

03Key features

  • Configuration attributes
    • Available configurations include: 2 V, High rate, UPS.
  • Specified against the duty cycle
    • Cell and plate selection matched to the real operating profile.
    • Capacity and autonomy sized to the load, not to a catalogue average.
  • Batch control
    • Incoming material control and in-process inspection on every batch.
    • Traceability from plate casting through to packing.
  • End-of-line testing
    • Electrical testing before packing, with results available on request.

04Specification

Battery type
VRLA gel (AGM)
Nominal voltage
2 V (1 cell)
Capacity range
180 - 730 Ah
Design life
12 years
Cycle use voltage
2.38 - 2.42 V
Standby use voltage
2.23 - 2.27 V
Company certification
ISO 9001 · ISO 14001 · ISO 45001

Figures are taken from the current AllGrand product brochure. Specifications are indicative and may be revised without notice — confirm with our engineers before ordering.

Applications & selection

Match high-rate discharge to UPS and short-duration backup loads

Typical fit

  • UPS and data-centre backup
  • Switchgear and emergency control
  • Short-duration high-current duty

Confirm before quotation

  • Backup duration and discharge current
  • End voltage required by the UPS or system
  • Cabinet, rack and terminal configuration

Engineering guides

Lead-acid vs LFP for commercial backup Compare operating life, maintenance, footprint and whole-project trade-offs. Battery storage RFQ checklist Use the same technical inputs our engineers need to price and configure a system. Supplier due diligence questions Compare scope, interfaces, test evidence, guarantees and service assumptions.
Send the load and installation details for a model-specific answer. Our engineering team normally replies within one business day.
Get model-specific price WhatsApp an engineer
