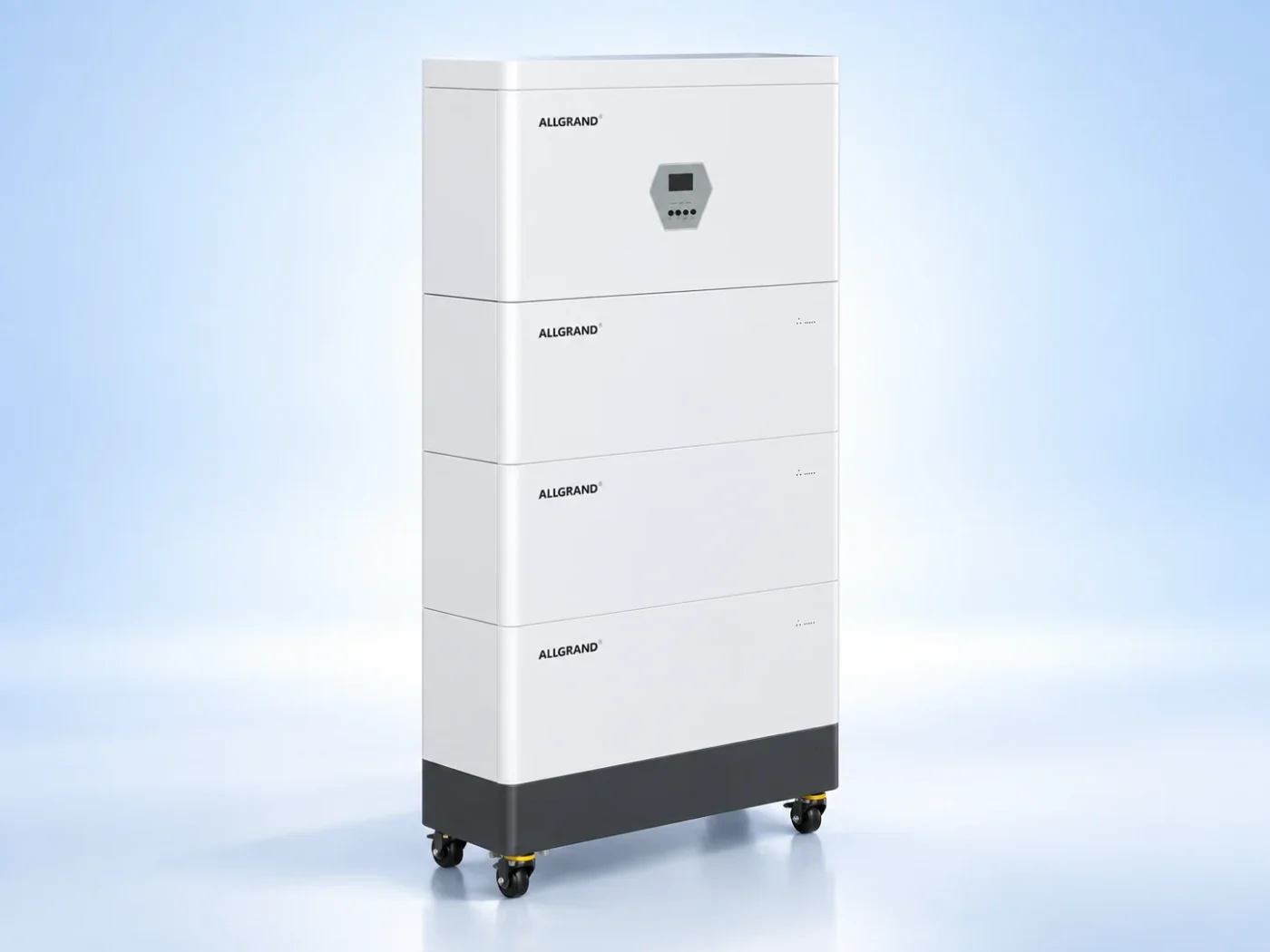

Ultra-thin stacked energy storage system, hero angle view

Product · Technical data

Ultra-Thin Stacked Energy Storage System

The same modular stack in a 240 mm deep enclosure, for installations where depth is the constraint.

Choose a model

Get Price & DatasheetWhatsApp an EngineerRelated Products

Model-specific price, datasheet and lead time. Engineering reply within one business day.

Specification Brochure data
Battery type
LFP (lithium iron phosphate)
Nominal voltage
51.2 V
Charge voltage, max
57.6 V
Discharge cut-off voltage
40 V
Configuration
16S1P, 16S1P×2, 16S1P×3, 16S1P×4
Communication
RS485 / CAN

Preliminary figures from the current brochure. Final configuration and performance are confirmed in the quotation.

01Model overview

51.2 V Nominal voltage
Design life

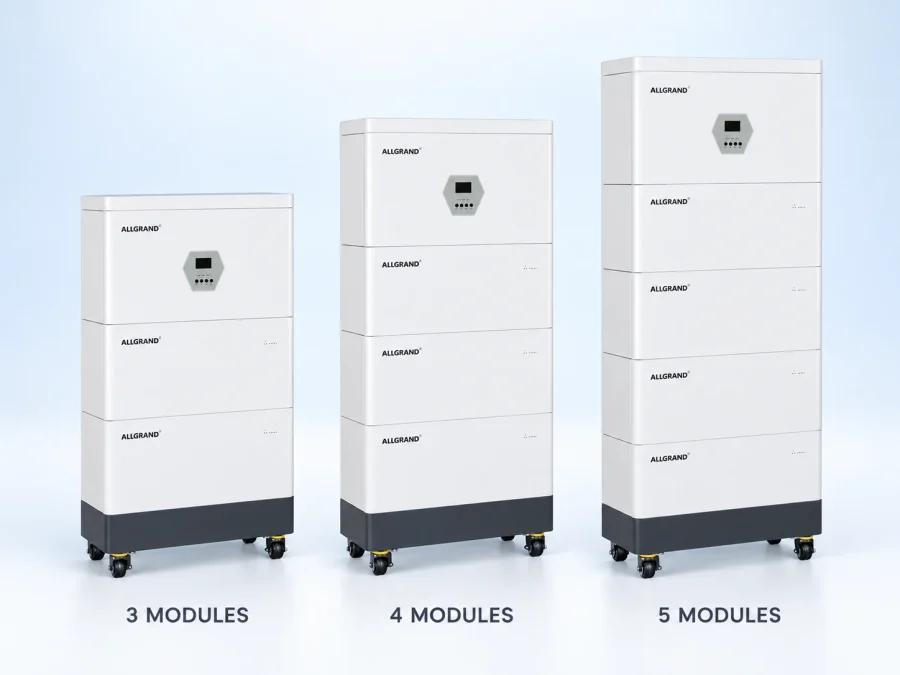

4 Models in this range
Model Rated energy Capacity Configuration Dimensions Max charge Max discharge
51.2V100Ah 5.12 kWh 100 Ah 16S1P 780 × 240 × 455 mm 50 A 50 A
51.2V200Ah 10.24 kWh 200 Ah 16S1P×2 780 × 240 × 740 mm 100 A 100 A
51.2V300Ah 15.36 kWh 300 Ah 16S1P×3 780 × 240 × 1025 mm 150 A 150 A
51.2V400Ah 20.48 kWh 400 Ah 16S1P×4 780 × 240 × 1310 mm 200 A 200 A

Figures are taken from the current AllGrand product brochure. Specifications are indicative and may be revised without notice — confirm with our engineers before ordering.

02Overview

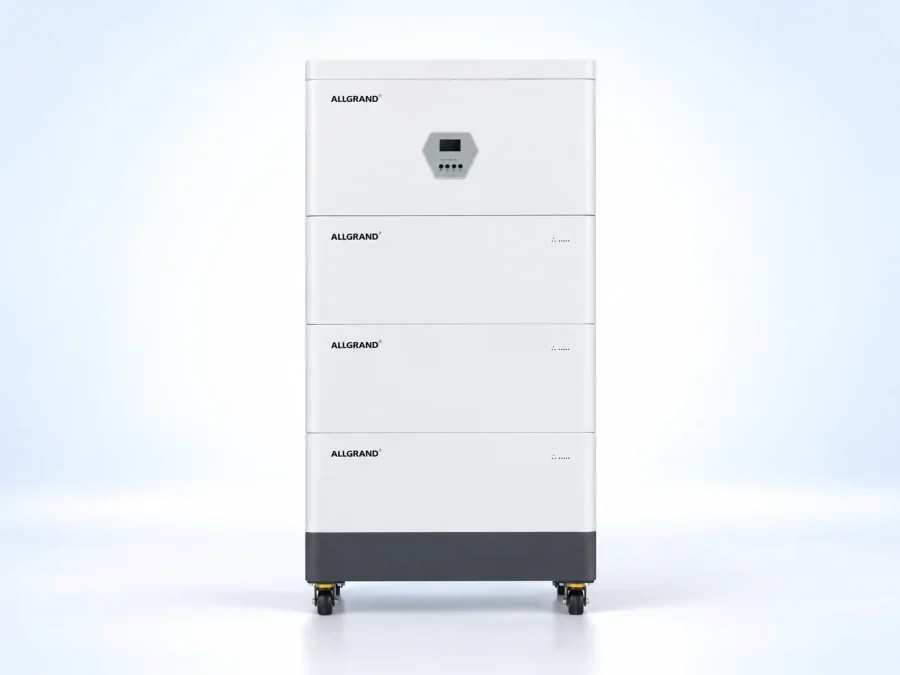

Ultra-thin stacked energy storage system, front angle view

The same modular stack in a 240 mm deep enclosure, for installations where depth is the constraint.

03Key features

  • Configuration attributes
    • Available configurations include: 5–20 kWh, 240 mm deep, Stacked.
  • Specified against the duty cycle
    • Cell and plate selection matched to the real operating profile.
    • Capacity and autonomy sized to the load, not to a catalogue average.
  • Batch control
    • Incoming material control and in-process inspection on every batch.
    • Traceability from plate casting through to packing.
  • End-of-line testing
    • Electrical testing before packing, with results available on request.

04Specification

Battery type
LFP (lithium iron phosphate)
Nominal voltage
51.2 V
Charge voltage, max
57.6 V
Discharge cut-off voltage
40 V
Configuration
16S1P, 16S1P×2, 16S1P×3, 16S1P×4
Communication
RS485 / CAN
Cycle life
≥ 6000 cycles (80% DOD)
Enclosure depth
240 mm — for shallow installation spaces
Cooling
Self-cooled, no dust accumulation

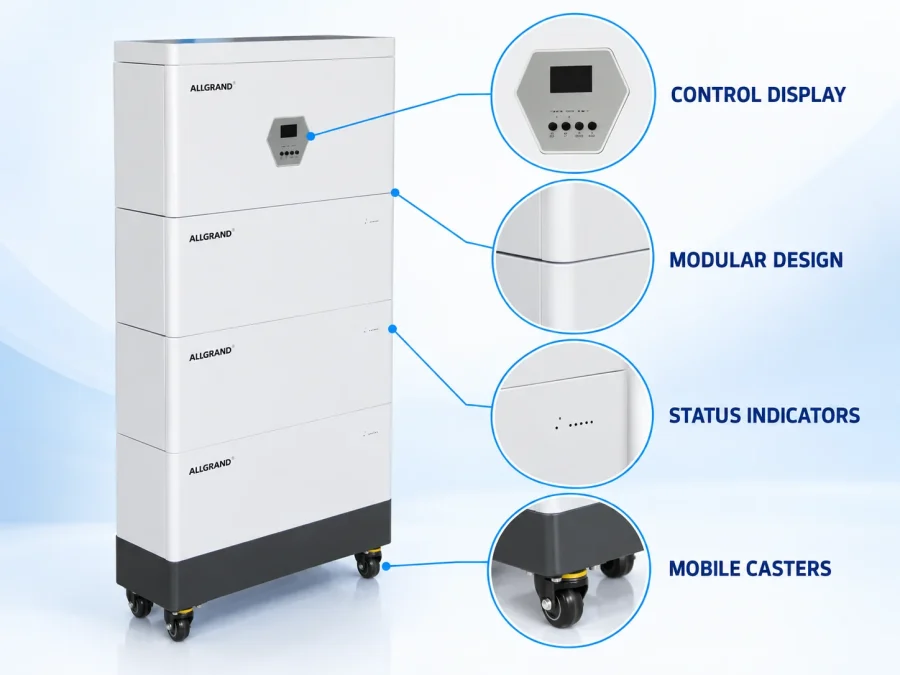

Display
LCD, one-key start
Optional inverter
AG-F51-05K-02 · AC220 · 220 VAC ±5% · 5000 W PV · 100–450 V PV input · 80 A max charge
Company certification
ISO 9001 · ISO 14001 · ISO 45001

Figures are taken from the current AllGrand product brochure. Specifications are indicative and may be revised without notice — confirm with our engineers before ordering.

Applications & selection

Size the energy-storage system around the load, not nameplate kWh alone

Typical fit

  • Scalable commercial and industrial storage
  • Indoor modular backup
  • Projects expected to expand in phases

Confirm before quotation

  • Load profile, peak kW and required usable kWh
  • Autonomy, C-rate, efficiency and temperature range
  • Site location, grid interface and control requirements

Engineering guides

Commercial BESS sizing checks Turn load data, usable energy, C-rate and site constraints into a defensible specification. Battery runtime calculation See which efficiency, temperature and aging losses reduce usable AC energy. Battery storage RFQ checklist Use the same technical inputs our engineers need to price and configure a system.
Send the load and installation details for a model-specific answer. Our engineering team normally replies within one business day.
