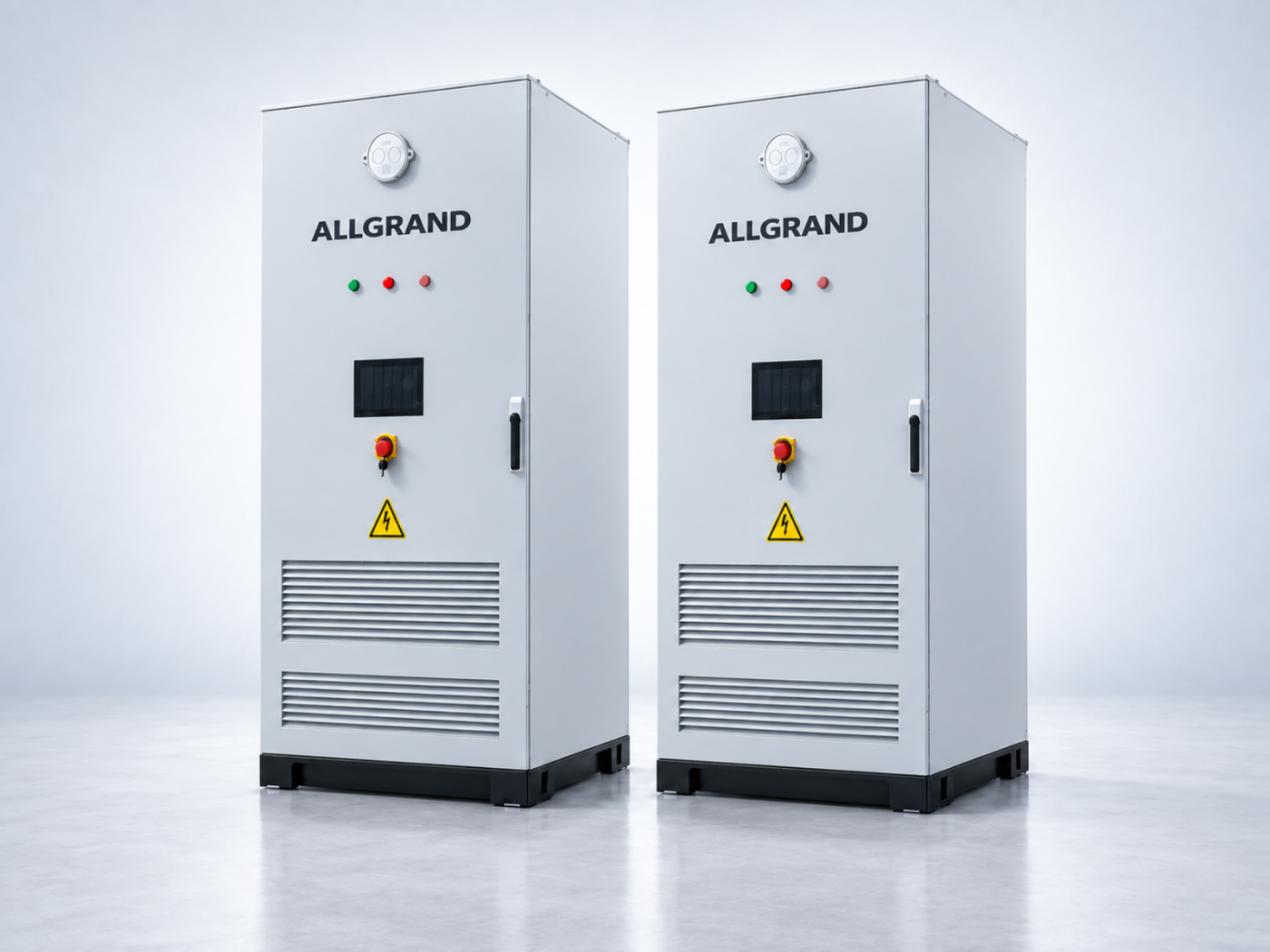

261 kWh Liquid-Cooled Energy Storage Cabinet

02Overview

03Key features

• 261 kWh
  • Detailed characteristics to be confirmed for this model.
• Liquid-cooled
  • Detailed characteristics to be confirmed for this model.
• C&I
  • Detailed characteristics to be confirmed for this model.
• Specified against the duty cycle
  • Cell and plate selection matched to the real operating profile.
  • Capacity and autonomy sized to the load, not to a catalogue average.
• Batch control
  • Incoming material control and in-process inspection on every batch.
  • Traceability from plate casting through to packing.
• End-of-line testing
  • Electrical testing before packing, with results available on request.

04Specification

Model

ESSL261-832-05C

Nominal capacity

261.25 kWh

Rated output power

125 kW

Rated voltage

DC 832 V

Capacity

314 Ah

Connection

Three-phase four-wire + PE

AC grid voltage

230 / 400 V (-15% to +15%)

Grid frequency

50 / 60 Hz

Power factor

1 leading to 1 lagging

Off-grid voltage

230 / 400 V

Unbalanced load

100% three-phase unbalanced load supported

Communication

RS485, Ethernet, 4G

Cell type

LFP 3.2 V / 314 Ah

Battery configuration

1P52S per box, 1P260S per system

Fire suppression

Cabinet level + in-pack level

Thermal management

Cooling, heating, self-test, communication

Operating temperature

-20 to 50 C

Operating humidity

5% to 95% RH, non-condensing

Dimensions (W x D x H)

1000 x 1350 x 2270 mm

Weight

2.9 t

Protection rating

IP54

Altitude

up to 2000 m

Figures are taken from the current AllGrand product brochure. Specifications are indicative and may be revised without notice — confirm with our engineers before ordering.
