SpecificationBrochure data
Battery type
VRLA gel (AGM)
Nominal voltage
12 V (6 cells)
Capacity range
24 - 250 Ah
Design life
12 years
Cycle use voltage
14.28 - 14.52 V
Standby use voltage
13.38 - 13.62 V
Preliminary figures from the current brochure. Final configuration and performance are confirmed in the quotation.
01Model overview
12 V (6 cells)Nominal voltage
12 yearsDesign life
9Models in this range
Model
10HR capacity
1HR capacity
Internal resistance
Max charge current
Dimensions
6-GFM-24
24 Ah
13.2 Ah
12.3 mΩ
3.6 A
165 × 125 × 170 mm
6-GFM-38
38 Ah
20.9 Ah
10.1 mΩ
5.7 A
197 × 166 × 174 mm
6-GFM-55
55 Ah
30.25 Ah
7.5 mΩ
8.25 A
263 × 165 × 166 mm
6-GFM-65
65 Ah
35.75 Ah
6.0 mΩ
9.75 A
350 × 171 × 177 mm

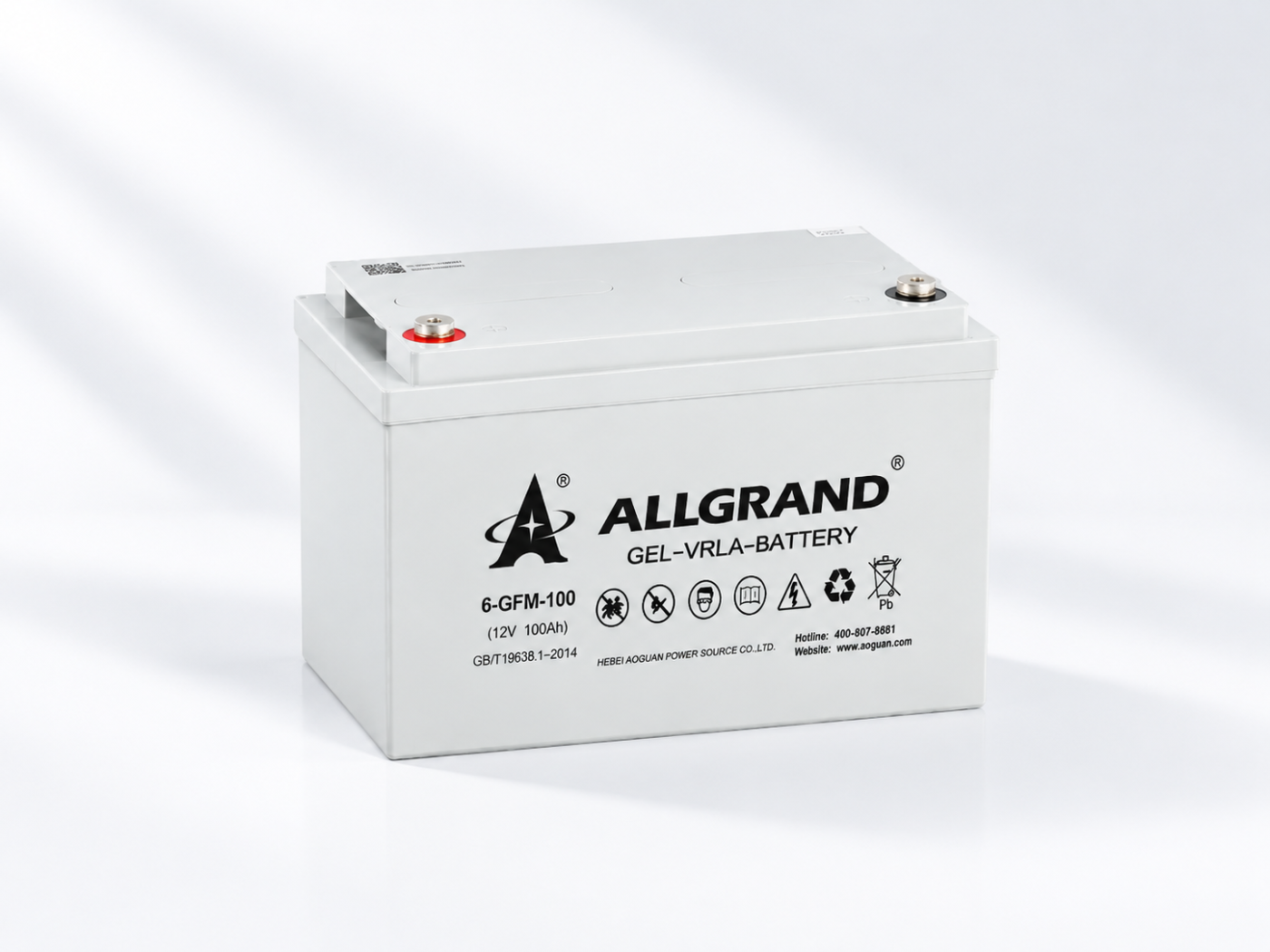

6-GFM-100
100 Ah
55 Ah
4.3 mΩ
15 A
330 × 172 × 215 mm
6-GFM-120
120 Ah
66 Ah
4.6 mΩ
18 A
405 × 174 × 209 mm
6-GFM-150
150 Ah
82.5 Ah
4.2 mΩ
22.5 A
483 × 170 × 226 mm
6-GFM-200
200 Ah
110 Ah
3.0 mΩ
30 A
521 × 240 × 219 mm
6-GFM-250
250 Ah
137.5 Ah
2.8 mΩ
37.5 A
519 × 268 × 220 mm
Figures are taken from the current AllGrand product brochure. Specifications are indicative and may be revised without notice — confirm with our engineers before ordering.
02Overview
Valve-regulated gel batteries for UPS, data centres, signalling and emergency lighting, 24 – 250 Ah at 12 V.
03Key features
Configuration attributes
Available configurations include: 12 V, VRLA gel, Standby.
Specified against the duty cycle
Cell and plate selection matched to the real operating profile.
Capacity and autonomy sized to the load, not to a catalogue average.
Batch control
Incoming material control and in-process inspection on every batch.
Traceability from plate casting through to packing.
End-of-line testing
Electrical testing before packing, with results available on request.
04Specification
Battery type
VRLA gel (AGM)
Nominal voltage
12 V (6 cells)
Capacity range
24 - 250 Ah
Design life
12 years
Cycle use voltage
14.28 - 14.52 V
Standby use voltage
13.38 - 13.62 V
Company certification
ISO 9001 · ISO 14001 · ISO 45001
Figures are taken from the current AllGrand product brochure. Specifications are indicative and may be revised without notice — confirm with our engineers before ordering.
Applications & selection
Specify 12 V standby power for UPS, telecom and control equipment
Typical fit
UPS and emergency power systems
Telecom and data-centre backup
Switchgear, control and security equipment
Confirm before quotation
Required backup time at the actual discharge current
Cabinet dimensions, terminal layout and orientation
Lead-acid and gel battery supply for UPS, telecom, solar and industrial backup projects. Choose a model range, then confirm the charger, duty cycle and destination requirements for a quotation.
Compare the 6-GFM-65, 6-GFM-100 and 6-GFM-120 in the model table above. For a bank designed around individual 2 V cells, see the GFM 2 V standby battery range.
Factory supply
AllGrand Group has manufactured batteries since 1987, with production bases in Hebei and Shandong and customers in more than 100 countries.
Model-level supply for single products, repeat orders and project quantities.
OEM/ODM support for configuration, labelling and export documentation.
What to send
Required model, capacity or system size.
Application, load profile and required backup time.
Destination country, order quantity and target delivery window.
Documents & quote
Datasheet and model-specific price.
Lead time and packing details confirmed per order.
Inspection, labelling and export documents agreed before shipment.
